XPM-96SS
*DISCONTINUED*

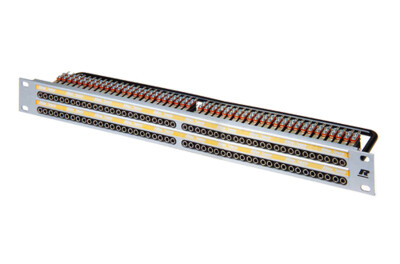

96 way Bantam Patch Panel, silver front panel, grouped 4 x 24, extra rugged jack sockets allow customized normalling
Le choix des thèmes
Features & Benefits
Downloads
Informations Techniques
Accessoires
Features & Benefits
- Robust designed patch panel to accept standard 4.4 mm Bantam jack connectors acc. MIL-P-642/13
- Fitted with 96 die-cast jack sockets
- Constructed from rigid aluminium extrusion which includes 2 integral slots for designation strips
- Traditional 2 row, 4 x 24 stereo jacks
- Suitable for audio, broadcast, data and industrial applications
Downloads
Technical Information
| Product | |
| Title | XPM-96SS |
| Connection Type | Patch Panel |
| Electrical | |
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | < 24 mΩ |
| Contact resistance | < 16 mΩ |
| Dielectric strength | > 0.5 kVdc |
| Frequencyrange | DC to > 50 MHz |
| Insulation resistance | > 1 GΩ @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
| Insertion force | < 25 N |
| Withdrawal force | > 10 N |
| Lifetime | > 20000 mating cycles |
| Wiresize |
| Material | |
| Contacts | Pallatium plated (Switch contacts) |
| Shell | diecast alloy (Jacks) |
| Shell plating | Silver front panel |
| Front panel | anodised Al |
| Lacing bar | powder coated steel |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
