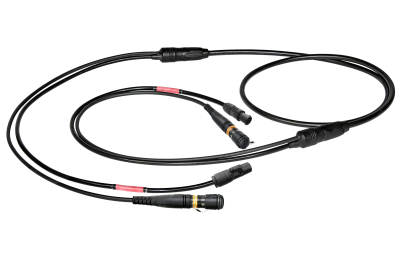

Rugged hybrid multi-channel cable assembly consisting of power wires (240V AC / 16A / 1.5 or 2.5mm²) and fiber lines (up to 12 channels). Perfect solution for harsh environments and mobile applications requiring both AC power and multiple fiber strands. Optimized for ENG/SNG.

Download Data Sheet

Le choix des thèmes

Features & Benefits Downloads Informations Techniques Accessoires

Download Data Sheet

Features & Benefits

Multi-channel solution based on the opticalCON and powerCON TURE1 TOP connectors
Perfect solution for applications where high volume of cabling is required. Optimized for point-to-point multi-channel routing and ENG/SNG applications
One hybrid cable can replace up to 7 standard cables, reducing spooling efforts, weight and space requirements

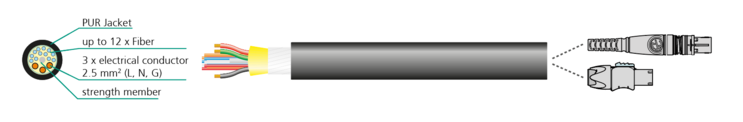

POWERSPLIT hybrid multi-channel cable consists of power wires (240V AC / 16A / 1.5 or 2.5mm²) and multi-channel fiber lines (up to 12 channels)
Ideal for harsh outdoor environments and mobile applications due to innovative rugged design of powerCON TRUE1 TOP and opticalCON ADVANCED DUO/QUAD/MTP connectors
Extremely long lifetime (up to 5000 mating cycles)
Lockable powerCON / opticalCON connectors ensure safe and uninterrupted power and data transmission
Complete solution is IP65 protected in mated condition
Innovative opticalCON spherical shutter protects fiber connection from dust even in unmated conditions and reduces required maintenance
Custom split configuration possible

Downloads

The opticalCON DUO/QUAD/MTP cable connector accommodates up to 12 PC/APC optical channels based on conventional and proven LC/MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover. The cable is available in different lengths and is packed either on a drum or air spooled.

The powerCON TRUE1 TOP is a locking 16A rms (USA: 20A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

ATTENTION: The powerCON TRUE1 TOP is a connector with IP65 rating and breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Cable cross section 2.5mm2

opticalCON POWER-SPLIT - cable cross section

Cable cross section 1.5mm2

Average voltage drop

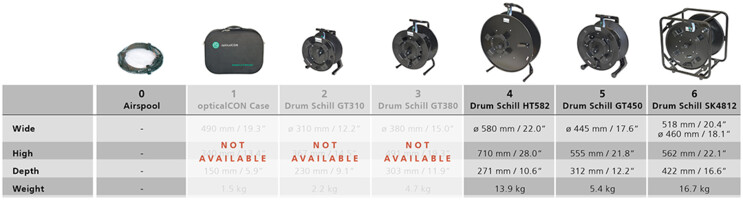

Packaging options and max. cable length

opticalCON Features

Neutrik opticalCON POWER-SPLIT Datenblatt

Technical Information

Product
Title	opticalCON POWER SPLIT

Mechanical
Cable retention	500 N
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	opticalCON DUO/QUAD: 5000 mating cycles
Lifetime (typ.)	opticalCON MTP: 2500 mating cycles
Wiresize
Locking device	Push-Pull

Material
Boot	Rubber (EPDM)
Bushing	Zinc diecast (ZnAl4Cu1)
Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Brass (CuZn39Pb3) + PU, Ni

Environmental
Temperature range	-40 °C to + 70 °C

Optical
Insertion loss	< 0.9 dB

Mobile cable
Colour	black, matte
Core diameter	Singlemode 9 µm (G.657A), Multimode 50 µm µm (OM3)
Cladding diameter	125 µm
minimal bending radius	24.2 cm
Number of fibers	8
Weigth	114 kg/km
