NE8FDH-C5E

NE8FDH-C5e

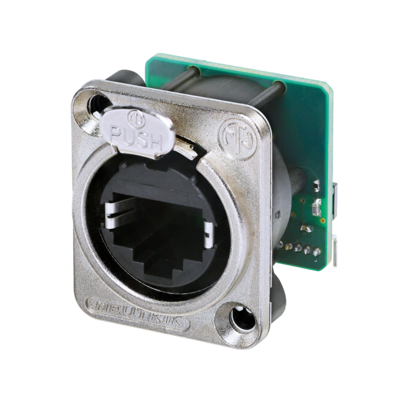

Horizontal C5e component compliant PCB panel mount RJ45 receptacle, D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws not included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Download Data Sheet

Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Ground-panel connection
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Downloads

Technical Information

Product
Title NE8FDH-C5e
Gender female
Electrical
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT 5eCAT5e acc. to TIA/EIA 568C channel specifications
CLASS D acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 4 mm 0.16'
Wiresize
Wiring Horizontal PCB mount
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)

Accessories

DSS
DSS-*
E-SCREW1-12 B
E-SCREW1-12 B
E-SCREW1-12NI
E-SCREW1-12NI
SCDX geschlossen
SCDX
SE8FD
SE8FD
SCCD-W
SCCD-W
