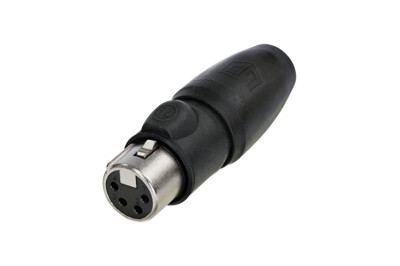

NC4FX-TOP
4 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65).
Gold contacts are standard.
Features & Benefits
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65
- Uses high impact UV resistant materials
- IEC 61984 certified
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC4FX-TOP |
| Connection Type | XLR |
| Gender | Female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 10 A |
| Rated voltage | 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 5.0 – 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | < 2.5mm² |
| 16 AWG | |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Bushing | UV-resistant rubber |
| Contact plating | Gold (Au) over Nickel (Ni) |
| Contacts | Brass |
| Insert | Polyamide |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast |
| Shell plating | Nickel |
| Strain relief | Polyacetal |
| Sealing jacket | UV-resistant rubber |
| Environmental | |
|---|---|
| Flammability acc. to UL94 | V-0 (insert) |
| Standard compliance | IEC 61076-2-103 |
| Protection class acc. IEC 60529 | IP65 (mated) |
| Solderability acc. to | IEC 60068-2-20 |
| Temperature range | -30 °C to +80 °C |
| Pollution degree acc. to IEC 60664-1 | II |
