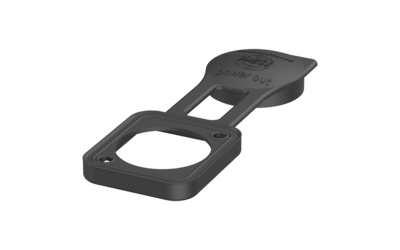

SCNAC-02

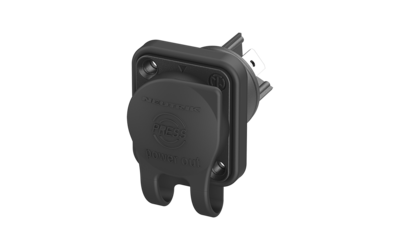

SCNAC-02 assembled

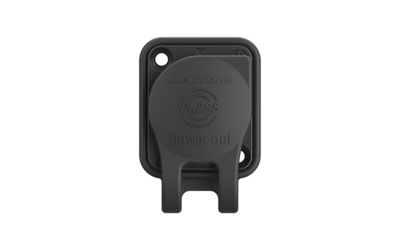

powerCON_SCNAC-02-sealing_front_RGB_WEB

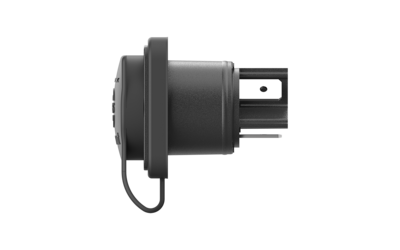

powerCON_SCNAC-02-sealing_side_RGB_WEB
SCNAC-02
SCNAC-02 assembled
powerCON_SCNAC-02-sealing_front_RGB_WEB
powerCON_SCNAC-02-sealing_side_RGB_WEB

SCNAC-02

NEW: The D-size rubber sealing cover protects the powerCON 20A chassis connectors NAC3MPXXB* and NAC3MPB-* from dust and water according to protection class IP 65. User friendly and easy to assemble, its compact frame allows for high packing density.

Download Data Sheet

Features & Benefits

  • IP 65 water and dust proof test passed for 15 mins with vacuum (-0.2bar) in closed condition, suitable for lighting industry
  • UV-resistant material for use in harsh outdoor environment
  • Allows high packaging density on the chassis
  • User friendly, easier to assemble

Downloads

Technical Information

Product
Title SCNAC-02
Material
Material EPDM
Color Black
Marking Power out
Environmental
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
